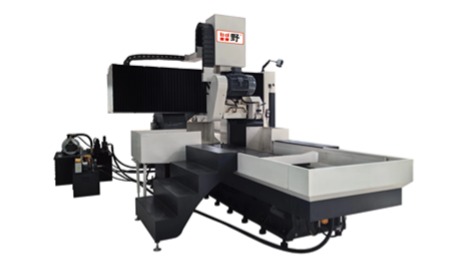

單頭龍門磨 | ||||||
| 模型/內容 Model / Content | PSG-1220GM | PSG-1230GM | PSG-1240GM | PSG-1620GM | PSG-1630GM | PSG-1640GM |
| X軸最大研磨長度 Max. grinding length of axis X | 2100mm | 3100mm | 4100mm | 2100mm | 3100mm | 4100mm |
| 工作臺尺寸（長x寬） Worktable size (L*W) | 2000x1000mm | 3000x1000mm | 4000x1000mm | 2000x1400mm | 3000x1400mm | 4000x1400mm |
| Y軸最大移動行程 Max. movement stroke of axis Y | 1200mm | 1 600mm | ||||
| Z軸最大移動行程 Max. movement stroke of axis Z | 500mm | 700mm | ||||
| 磨削高度（臥頭為準） Grinding height (subject to horizontal head) | 500mm | 700mm | ||||
| 兩立柱間距（寬x高） Distance between two columns (W*H) | 1200x700mm | 1600xgoo mm | ||||
| X軸移動速度 Moving speed of axis X | 5-25 (m/min) | 5-25 (m/min) | ||||
| Y軸移動速度 Movement speed of axis Y | 0-5 (m/min) | 0-5 (m/min) | ||||
| Z軸移動速度 Movement speed of axis Z | 0-2 (m/min) | 0-2 (m/min) | ||||
| 臥頭主軸轉速 Spindle speed of horizontal head | 0-1000rpm | 0-1000rpm | ||||
| 立頭主軸轉速 Spindle speed of vertical head | / | / | ||||
| 立頭旋轉角度 Rotating angle of vertical head | / | / | ||||
| 推真臥頭砂轉尺寸（外徑x寬度x孔徑） Max. horizontal head grinding wheel size (OD * Width * Hole Diameter) | 500x100x203 | 500x100x203 | ||||
| 推真立頭砂轉尺寸（外徑x寬度x孔徑） Max. vertical head grinding wheel size (OD * Width * Hole Diameter) | / | / | ||||
| 工作臺導軌形式 Worktable rail form | 雙V型導軌 | 雙V型導軌 | ||||
| 工作臺T型槽（尺寸x距離x數量） Worktable T-slot (Size * Distance * Qty.) | 22mmx170mmx6 | 22mmx170mmx8 | ||||
| 工作臺最大承重 Max. bearing capacity of worktable | 3000kg | 3000kg | 4000kg | 3500kg | 5000kg | 6500kg |
| 機械重量 Mechanical weight | 13000kg | 16000kg | 21000kg | 18000kg | 21000kg | 24000kg |
